Adding the SendGrid Integration

SendGrid is a cloud-based service for delivering transactional and marketing emails. Connecting this integration allows your application to send emails programmatically (e.g., welcome emails, password resets, or notifications).

Configuration Steps

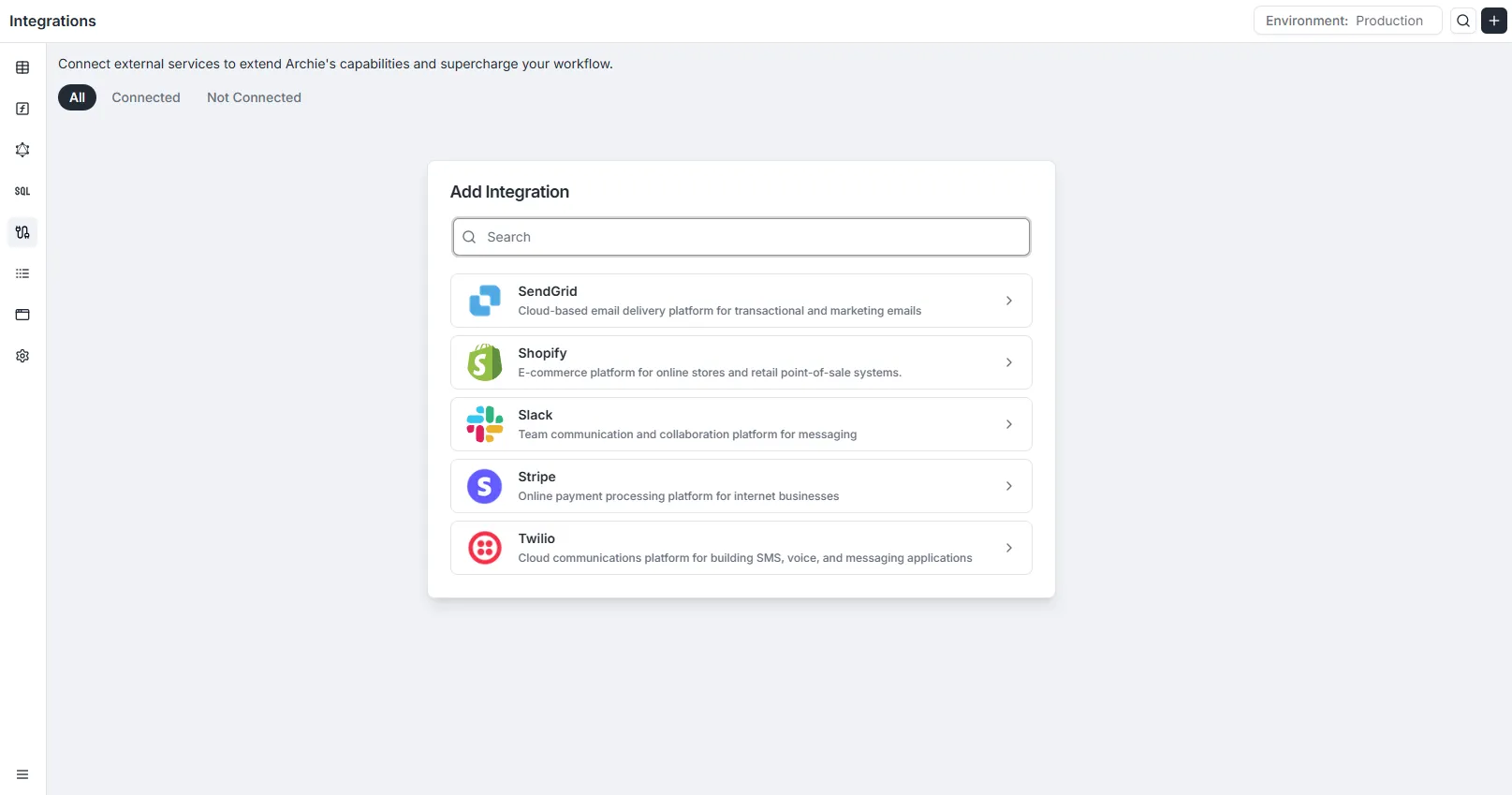

After selecting SendGrid from the integration list, a configuration modal will appear. You must provide the following credentials to establish the connection:

1. API Key

This is the authentication token generated within your SendGrid account.

Input: Paste your private SendGrid API Key into the text field.
Help: If you do not have one, click the “Where to find API Key?” link provided in the modal for instructions on how to generate it.

2. Environment

Specify the environment context for this integration.

Input: Enter the environment identifier (e.g., Production, Staging, or a specific configuration tag) in the Environment field.

Finalizing the Connection

Once the fields are filled:

Review the status bar (currently showing Not Connected).
Click the black Add button at the bottom right to save the credentials and activate the integration.

SendGrid Configuration

SendGrid Integration

SendGrid Integration API Reference

Configuración de SendGrid

Configurar API Key de SendGrid

Configura la API key de SendGrid para un proyecto y ambiente específico.

Mutation:

mutation {
  sendgrid_configureSendGrid (
    apiKey: "SG._api_key_here"
  )
}

Sending Emails

Send Simple Email

Sends an email to one or multiple recipients.

Mutation:

mutation sendgrid_sendEmail {
  sendgrid_sendEmail (
    email: {
    from: {
        email: "sender@archie.com",
        name: "Sender Name"
      },
      subject: "Test Email",
      to: {
        email: "recipient@gmail.com",
        name: "Recipient Name"
      },
      content: {
        type: "text/html",
        value: "<h1>Hello World</h1><p>This is a test email.</p>"
      }
    }
  ) {
    messageId
    success
  }
}

Response:

{
  "data": {
    "sendgrid_sendEmail": {
      "messageId": "sent-1234567890",
      "success": true
    }
  }
}

Send Email with CC and BCC

Mutation:

mutation sendgrid_sendEmail {
  sendgrid_sendEmail (
    email: {
      from: {
        email: "sender@example.com"
        name: "Sender Name"
      }
      to: [
        {
          email: "recipient@example.com"
          name: "Recipient Name"
        }
      ]
      cc: [
        {
          email: "cc@example.com"
          name: "CC Recipient"
        }
      ]
      bcc: [
        {
          email: "bcc@example.com"
        }
      ]
      subject: "Email with CC and BCC"
      content: [
        {
          type: "text/html"
          value: "<h1>Hello</h1><p>This email has CC and BCC recipients.</p>"
        }
      ]
    }
  ) {
    messageId
    success
  }
}

Send Email with Attachments

Mutation:

mutation sendgrid_sendEmail {
  sendgrid_sendEmail(
    email: {
      from: {
        email: "sender@example.com"
        name: "Sender Name"
      }
      to: [
        {
          email: "recipient@example.com"
          name: "Recipient Name"
        }
      ]
      subject: "Email with Attachment"
      content: [
        {
          type: "text/html"
          value: "<h1>Hello</h1><p>Please find attached file.</p>"
        }
      ]
      attachments: [
        {
          content: "SGVsbG8gV29ybGQ="
          type: "text/plain"
          filename: "document.txt"
          disposition: "attachment"
        }
      ]
    }
  ) {
    messageId
    success
  }
}

Note: The content field in attachments must be Base64 encoded.

Send Email with Categories and Tags

Mutation:

mutation sendgrid_sendEmail {
  sendgrid_sendEmail(
    email: {
      from: {
        email: "sender@example.com"
        name: "Sender Name"
      }
      to: [
        {
          email: "recipient@example.com"
          name: "Recipient Name"
        }
      ]
      subject: "Categorized Email"
      content: [
        {
          type: "text/html"
          value: "<h1>Hello</h1>"
        }
      ]
      categories: ["transactional", "notification"]
      tags: ["important", "urgent"]
    }
  ) {
    messageId
    success
  }
}

Send Email Programmed

Mutation:

mutation sendgrid_sendEmail {
  sendgrid_sendEmail(
    email: {
      from: {
        email: "sender@example.com"
        name: "Sender Name"
      }
      to: [
        {
          email: "recipient@example.com"
          name: "Recipient Name"
        }
      ]
      subject: "Scheduled Email"
      content: [
        {
          type: "text/html"
          value: "<h1>Hello</h1>"
        }
      ]
      sendAt: "2025-12-25T10:00:00Z"
    }
  ) {
    messageId
    success
  }
}

Send Email with Custom Args

Mutation:

mutation sendgrid_sendEmail {
  sendgrid_sendEmail(
    email: {
      from: {
        email: "sender@example.com"
        name: "Sender Name"
      }
      to: [
        {
          email: "recipient@example.com"
          name: "Recipient Name"
        }
      ]
      subject: "Email with Custom Args"
      content: [
        {
          type: "text/html"
          value: "<h1>Hello</h1>"
        }
      ]
      customArgs: {
        orderId: "12345"
        userId: "67890"
        campaignId: "abc123"
      }
    }
  ) {
    messageId
    success
  }
}

Send Bulk Emails

Send Multiple Emails

Mutation:

mutation sendgrid_sendBulkEmail {
  sendgrid_sendBulkEmail(
    emails: {
      emails: [
        {
          from: {
            email: "sender@example.com"
            name: "Sender Name"
          }
          to: [
            {
              email: "recipient1@example.com"
              name: "Recipient 1"
            }
          ]
          subject: "Bulk Email 1"
          content: [
            {
              type: "text/html"
              value: "<h1>Email 1</h1>"
            }
          ]
        }
        {
          from: {
            email: "sender@example.com"
            name: "Sender Name"
          }
          to: [
            {
              email: "recipient2@example.com"
              name: "Recipient 2"
            }
          ]
          subject: "Bulk Email 2"
          content: [
            {
              type: "text/html"
              value: "<h1>Email 2</h1>"
            }
          ]
        }
      ]
    }
  ) {
    messageIds
    success
  }
}

Response:

{
  "data": {
    "sendgrid_sendBulkEmail": {
      "messageIds": ["sent-1234567890", "sent-1234567891"],
      "success": true
    }
  }
}

Send Emails with Templates

Send Email using Dynamic Template

Mutation:

mutation sendgrid_sendTemplate {
  sendgrid_sendTemplate(
    email: {
      from: {
        email: "sender@example.com"
        name: "Sender Name"
      }
      to: [
        {
          email: "recipient@example.com"
          name: "Recipient Name"
        }
      ]
      templateId: "d-1234567890abcdef"
      substitutions: {
        name: "John Doe"
        orderNumber: "12345"
        totalAmount: "$99.99"
      }
    }
  ) {
    messageId
    success
  }
}

Response:

{
  "data": {
    "sendgrid_sendTemplate": {
      "messageId": "sent-1234567890",
      "success": true
    }
  }
}

Send Contact Management

Send Add Contact

Mutation:

mutation sendgrid_addContact {
  sendgrid_addContact(
    contact: {
      email: "newcontact@example.com"
      firstName: "John"
      lastName: "Doe"
      customFields: {
        company: "Acme Corp"
        phone: "+1234567890"
        position: "Developer"
      }
      listIds: ["list-id-1", "list-id-2"]
    }
  )
}

Response:

{
  "data": {
    "sendgrid_addContact": true
  }
}

Send Update Contact

Mutation:

mutation sendgrid_updateContact {
  sendgrid_updateContact(
    contact: {
      email: "existing@example.com"
      firstName: "Jane"
      lastName: "Smith"
      customFields: {
        company: "New Company"
        phone: "+0987654321"
      }
    }
  )
}

Response:

{
  "data": {
    "sendgrid_updateContact": true
  }
}

Send Delete Contact

Mutation:

mutation sendgrid_deleteContact {
  sendgrid_deleteContact(
    email: "contact@example.com"
  )
}

Response:

{
  "data": {
    "sendgrid_deleteContact": true
  }
}

Send Analytics and Statistics

Send Get Email Stats

Query:

query sendgrid_getEmailStats {
  sendgrid_getEmailStats (
    startDate: "2025-01-01"
    endDate: "2025-01-31"
  ) {
    opens
    clicks
    bounces
    spamReports
    delivered
    startDate
    endDate
  }
}

Response:

{
  "data": {
    "sendgrid_getEmailStats": {
      "opens": 150,
      "clicks": 75,
      "bounces": 5,
      "spamReports": 2,
      "delivered": 1000,
      "startDate": "2025-01-01T00:00:00Z",
      "endDate": "2025-01-31T00:00:00Z"
    }
  }
}

Send Validate Email

Query:

query sendgrid_validateEmail {
  sendgrid_validateEmail (
    email: "test@example.com"
  ) {
    valid
    score
    local
    domain
    reason
    suggestions
  }
}

Response (with SendGrid Premium):

{
  "data": {
    "sendgrid_validateEmail": {
      "valid": true,
      "score": 0.95,
      "local": "test",
      "domain": "example.com",
      "reason": "",
      "suggestions": []
    }
  }
}

Response (Basic validation - when SendGrid Premium is not available):

{
  "data": {
    "sendgrid_validateEmail": {
      "valid": true,
      "score": 0.8,
      "local": "test",
      "domain": "example.com",
      "reason": "Basic validation (SendGrid premium validation not available)",
      "suggestions": []
    }
  }
}

Note: The SendGrid email validation endpoint (/v3/validations/email) requires special permissions and may not be available in all accounts. If your API key does not have access to this endpoint (error 403), the system will automatically use basic validation based on regex as a fallback.

Complete Examples with Variables

Example with GraphQL Variables

Request:

{
  "query": "mutation SendEmail($email: EmailInput!) { sendgrid_sendEmail(email: $email) { messageId success } }",
  "variables": {
    "email": {
      "from": {
        "email": "sender@example.com",
        "name": "Sender Name"
      },
      "to": [
        {
          "email": "recipient@example.com",
          "name": "Recipient Name"
        }
      ],
      "subject": "Test Email",
      "content": [
        {
          "type": "text/html",
          "value": "<h1>Hello World</h1>"
        }
      ]
    }
  }
}

Error Handling

Error Example

Request:

{
  "query": "mutation { sendgrid_sendEmail(email: { from: { email: \"invalid\" }, to: [], subject: \"Test\", content: [] }) { messageId success } }"
}

Response Error:

{
  "errors": [
    {
      "message": "validation error: at least one recipient is required",
      "path": ["sendgrid_sendEmail"]
    }
  ],
  "data": null
}

Common Errors

Project ID missing:

{
  "errors": [{
    "message": "project ID is required in context"
  }]
}

Configuration not found:

{
  "errors": [{
    "message": "sendgrid configuration not found for project: xxx, environment: master"
  }]
}

API Key invalid:

{
  "errors": [{
    "message": "sendgrid API error: status 401, body: ..."
  }]
}

Webhooks

Webhooks Endpoint

The webhooks endpoint is available at:

HTTP: POST http://localhost:8080/webhooks/sendgrid
Lambda: POST /webhooks/sendgrid

SendGrid Configuration

Go to SendGrid Dashboard > Settings > Mail Settings > Event Webhook
Configure the URL: https://tu-dominio.com/webhooks/sendgrid
Select the events you want to receive
Configure the verification key in the environment variable WEBHOOK_VERIFICATION_KEY

Supported Events

processed: Email processed
delivered: Email delivered
opened: Email opened
clicked: Link clicked
bounce: Email rebotado
dropped: Email descartado
spamreport: Reportado como spam
unsubscribe: Desuscripción
